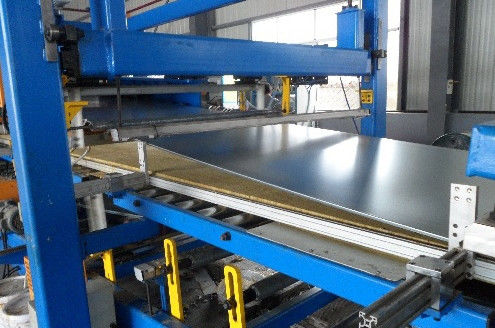

Edge Milling Mineral Wool Rock Wool Sandwich Panel Line

Mineral Wool Sandwich Panel Machine

he Sandwich Panel Production Line is composed of four (5) main sections, such as, STEEL DECOILER,ROLL FORMING MACHINE,EPS AND ROCK WOOL LOADER AND EDGE MILLING MACHINE,SANDWICH PANEL LAMINATOR,BLADE AND SAW CUTTING MACHINE,ROLLING TABLE.

The production line is 42000mm x 4000mm x 2350mm.

III . THE MAIN PARTS OF THE PRODUCTION LINE:

• DECOILER For roof rollers: 1Set.

• Type of Decoiler: Single shaft
• Width of coil: ≤ 1250mm
• Weight of coil: ≤ 6mt

• ROLL FORMING MACHINE : 2Set.

• Roller station for Flat panel: 8stands
• Roller material: GCr15 Alloy
• Driving and Transmission: 1.5kw Gear motor

5. ROCK WOOL LOADER AND EDGE MILLING MACHINE: 1Pcs.

• Type of milling: Milling round knife
• Numbers of miller: Left and right two piece
• Driving Motor Power: 0.75 Kw x 2

5. SANDWICH PANEL LAMINATOR WITH ROOF FRAME-9m: 1Pcs.

5.1 LAMINATING ROLLER:

• Rubber roller Diameter: 150mm
• Thickness of composite rubber layer: 10mm
• Number of rollers: 26 pairs

5.2 GLUE SPRAYING DEVICE:

• Number of pump: 4 sets (top & bottom each 2)
• Required Power: 0.37 Kw
• Flow volume of glue: 0 – 0.4 kg per pump
• Type of flow volume control: Frequency inverter
• Scale of glue: Adjustable

5.3 GLUE UNIFORMITY DEVICE: Speed of spreading: 80 times/min;

Required Power: 0.5Kw x 3;

Pneumatic piston lifting;

Position adjusting from front and back;

5.4 PLASTIC FILM COATING DEVICE: Conical push pin by wheel adjusting;

5.5 DUST SUCTION FOR WASTE:

• Type of suction: Blowing fan;
• Required Power: 2.2 Kw;

6. BLADE AND CIRCULAR SAW PANEL CUTTER: 1Pcs.

• Required Power 1.5 Kw x 2
• Thickness of Panel 40mm – 200mm
• Length of Panel 1200mm – 30000mm
• Movement of Cutter: 1800mm (cylinder distance)
• Type of operating: Touch screen and PLC
• Sliding rail: Linear bearing

7.Parts listing:
