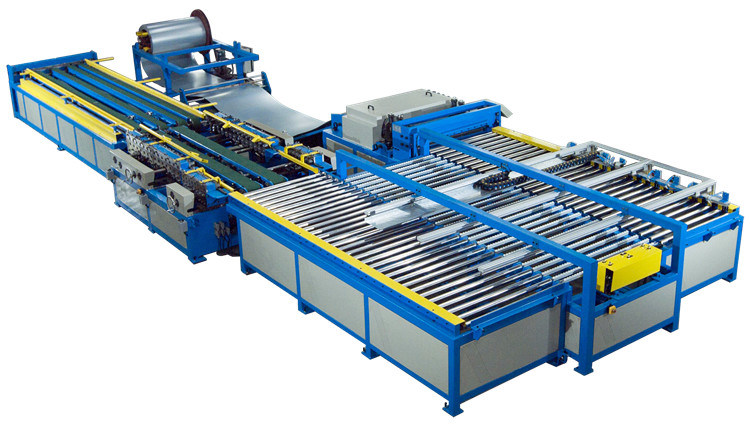

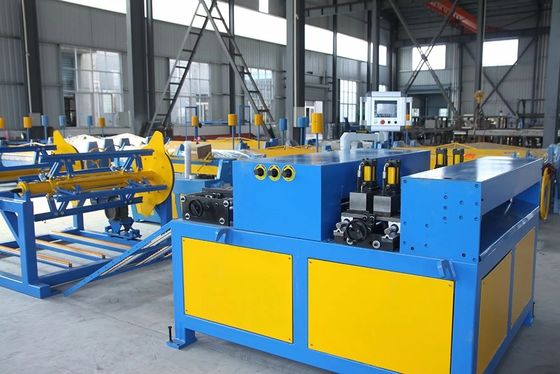

U Shaped Hvac Rectangular Duct Forming Machine

Product Details:

Place of Origin:	china
Brand Name:	ZC
Certification:	CE/ISO
Model Number:	ZC-3/5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	wood
Delivery Time:	on condition
Payment Terms:	TT or LC

Contact Now

Detailed Product Description

Highlight:

Rectangular Duct Forming Machine

30kw Rectangular Duct Forming Machine

30kw Duct Making Machine

Rectangular Hvac Duct Forming Machine

Function

It's mainly for TDF/angle steel/C-shaped flange forming with daily processing capability of 1000-2500 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling , leveling, beading, punching,shearing, locking, forming TDF/angle steel/C- shaped flange and folding.

Advantages

The machine is U-shaped, easy to install and it's suitable for small-sized or mid-sized work-shops because it occupies a small piece.

The injection holes are used at both ends of the drive shaft, to enhance the bearing life.

Power bending function is used to prevent generating the waste and make sure perfect bending accuracy.

It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double comparing with the linear type.

Without moving back and forth the fixed locking machine is able to improve the efficiency.

All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

Under the material-saving mode of CNC system, waste is less than 20mm per roll.

With production memory functions, the production orders can be tracked and checked.

It only need one or two person to operate , Save a lot of labor and increase the production efficiency.

Main Import Configuration

Beijing Huade plus hydraulic system from Taiwan

Japan Omron encoder

Taiwan Hiwin linear guideways

Schneider electrical system

Basic Configuration

Two electric coil cradles, 4 material trays (5-7t each roll)

One rack

One host (line 2 host)

Two stainless steel roller conveyer platforms

One fixed joint locking machine

One duplex TDF flange forming machine

One duplex angle steel flange forming machine

One servo feeding platform

One hydraulic folding machine

One set of computer controlling system

Main Technical Parameters

Modle	Sheet thickness(mm)	Max width(mm)	Max working speed(m/min)	Coiler max weight(T)	Dimensions(m) LWH	Power(kw)	Weight (T)
ZC-5U-1250	0.5-1.2	1250	15	7	1650050001500	30	13
ZC-5U-1500	0.5-1.2	1500	15	7	1650054001500	30	14
