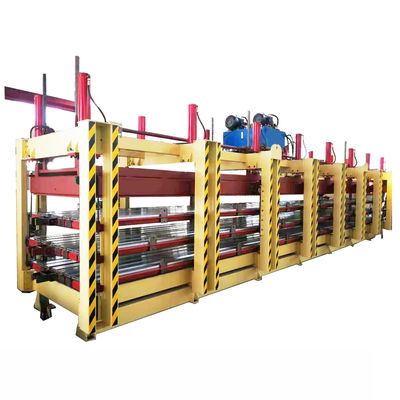

60T Fire resistance PU Sandwich Panel Line Discontinuous

60T Fire resistance PU Sandwich Panel Line Discontinuous

60T Fire resistance PU Sandwich Panel Line Discontinuous
60T Fire resistance PU Sandwich Panel Line Discontinuous
60T Fire resistance PU Sandwich Panel Line Discontinuous
Product Details:
Place of Origin: china
Brand Name: ZC
Certification: CE/ISO
Model Number: ZC-LD24M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wood
Delivery Time: on condition
Payment Terms: TT or LC
Contact Now
Detailed Product Description
Product Name: Pu Sandwich Panel Line Production Speed(m/min): (Adjustable)3-8
Total Size(Length×Width×Height): 130000×15000×6000 Core Components: Forming Machine
Advantage: Waterproof, Fire Resistance,lightness Inner Material: EPS, Rock Wood
Roller Material: Carbon Steel 45# Blade Material:: Blade Material:
Highlight:

60T PU Sandwich Panel Machine

,

Fire Resistance Polyurethane Sandwich Panel Machine

,

Discontinuous Wall Panel Making Machine

Discontinuous PU Sandwich Panel Press Production Line (2+2, 1+1 or 1 Car)

The production line of the machine to absorb a variety of advantages of the press,the company designed and manufactured by our company series two into two out of the press is mainly used in the production of sandwich panels,laminating machine mainly is composed of a machine frame and load template, clamping way adopts hydraulic driven,carrier template water heating mold temperature machine heating, ensure the curing temperature of 40 DEGC.Laminator can tilt the whole of 0 to 5degrees.For the convenience of the workpiece material and to take action and move up and down template to automatically import and laminating machine; the layer four mobile template can be alternated between production and improve the production efficiency.
Laminating machine parts
number of plies
2+2
Load the template size
12500*1200mm
mould height
250mm
clamping force
280kgf
working oil pressure
15mpa
Heat the water pressure
0.2mpa
water temperature
85℃
voltage
380V/50HZ
power
120kw
weight
60T
Travelling form
Upper mobile template operation level
1052mm
speed of mobile template driven
360mm/s
lower speed of mobile template driven
693mm
Track component
orbit altitude
170mm
Track length
40500mm
Number of sets of orbit
2sets
lay direction
Laminating machine around both ends

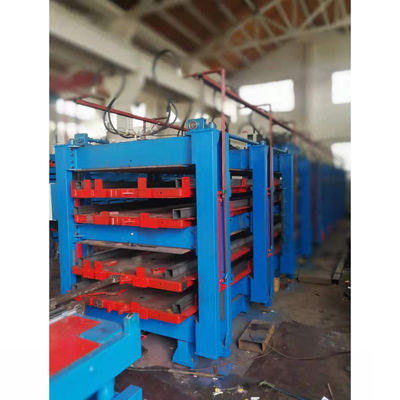

60T Fire resistance PU Sandwich Panel Line Discontinuous 0
